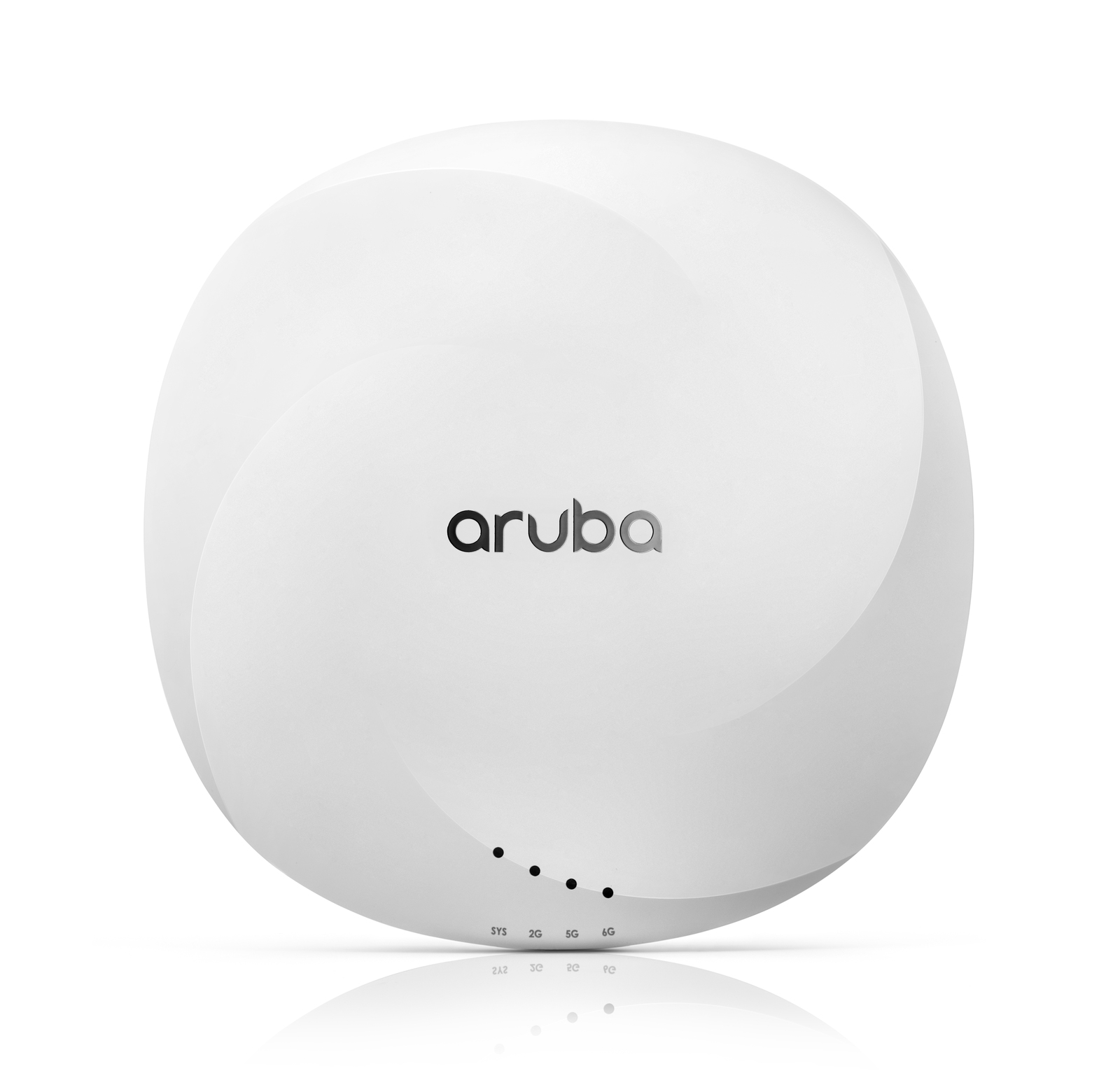

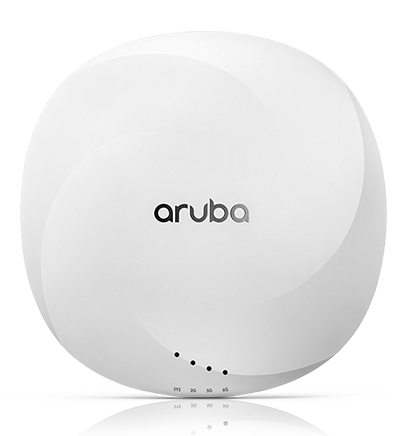

HPE Aruba AP-635 (RW) Campus AP
R7J27A
HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled allowing enterprises to meet the today needs and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables.
122.358 kr
InStock
98.676 kr Án vsk
Eiginleikar
- Framleiðandi
- HPE Aruba
- Litur
- Hvítur
- Eiginleikar
- Wifi 6 , Wifi 6E , Innisendir , 2.4 GHz , 5.0 GHz , 6.0 GHz
- Gerð punkts:
- Contol based , Control based cloud , Stand alone
- Umhverfisvottun
- CE
Vörulýsing

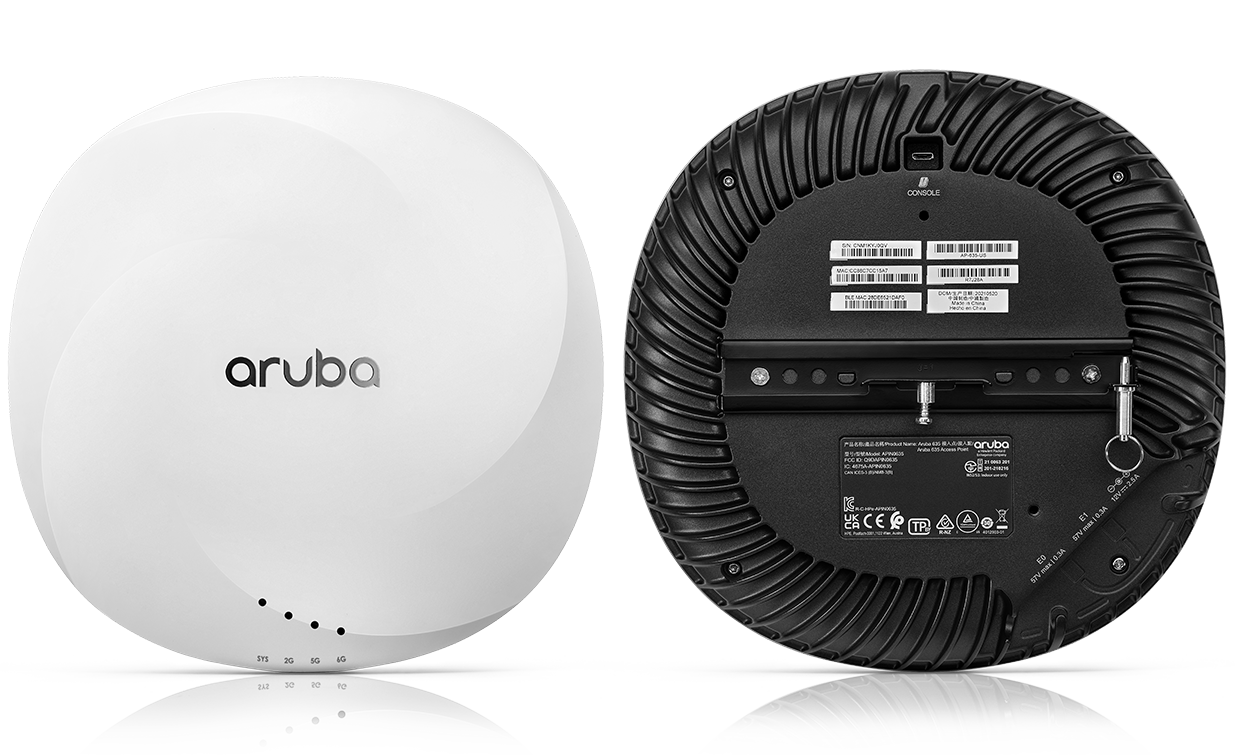

HPE Aruba Networking 630 Series Campus Access Points
CertificationsUL2043 plenum rating; Wi-Fi Alliance; Wi-Fi CERTIFIED a, b, g, n, ac; Wi-Fi CERTIFIED 6E (ax, 6GHz); WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE); WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband; Wi-Fi Location; Passpoint (release 2); Bluetooth SIG; Ethernet Alliance (POE, PD device, class 5)
Input voltage12 Vdc (+/- 5%) or 48 Vdc (nominal) PoE
RegulatoryFCC/ISED; CE Marked; RED Directive 2014/53/EU; EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU; UL/IEC/EN 60950; IEC/EN 62368-1; EN 60601-1-1, EN60601-1-2
For more country-specific regulatory information and approvals, contact see your HPE Aruba Networking representative.
Regulatory considerations for AP-634:
The HPE Aruba Networking AP-634 will be offered in countries where there is an existing or clear and defined path to allow operation of 6 GHz radios with external connectorized antennas, either as a low power indoor or standard power product. Please contact your HPE Aruba Networking representative to confirm (existing or planned) availability for the country where the AP will be deployed.
Wi-Fi antennaAP-634 (external antenna support): Two sets of two (female) RP-SMA connectors for external antennas (A0 & A1 corresponding with radio chains 0 and 1 for the 2.4 GHz and 5 GHz radios, and B0 and B1 corresponding with radio chains 0 and 1 for the 6 GHz radio). Worst-case internal loss between radio interface and external antenna connectors: 1.0 dB in 2.4 GHz, 1.0 dB in 5 GHz and 1.0 dB in 6 GHz.
AP-635 (internal antenna): Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.6 dBi in 2.4 GHz, 7.0 dBi in 5 GHz and 6.3 dBi in 6 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.
Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.9 dBi in 2.4 GHz, 4.9 dBi in 5 GHz and 4.3 dBi in 6 GHz.
Heat dissipation66.3 BTU/hr worst case (PoE powered), 57.9 BTU/hr worst case (DC)
Connectivity, standardWLAN: tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11ax 2x2 MIMO
Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio
PortsE0, E1: Two Ethernet wired network ports (RJ-45), auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
DC power interface
USB 2.0 host interface (Type A connector)
Visual indicators (four multi-color LEDs)
Reset button: factory reset, LED mode control
Power consumption23.8 W worst case (POE powered), 20.7 W worst case (DC). Excludes power needed to supply up to 5W to an attached USB device.
Radio coverageIndoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11ax 2x2 MIMO
WarrantyLimited lifetime warranty. See the warranty duration.
Weight1300g (2.86lb)
Dimensions220mm x 220mm x 50mm (8.66in x 8.66in x 1.96in)
