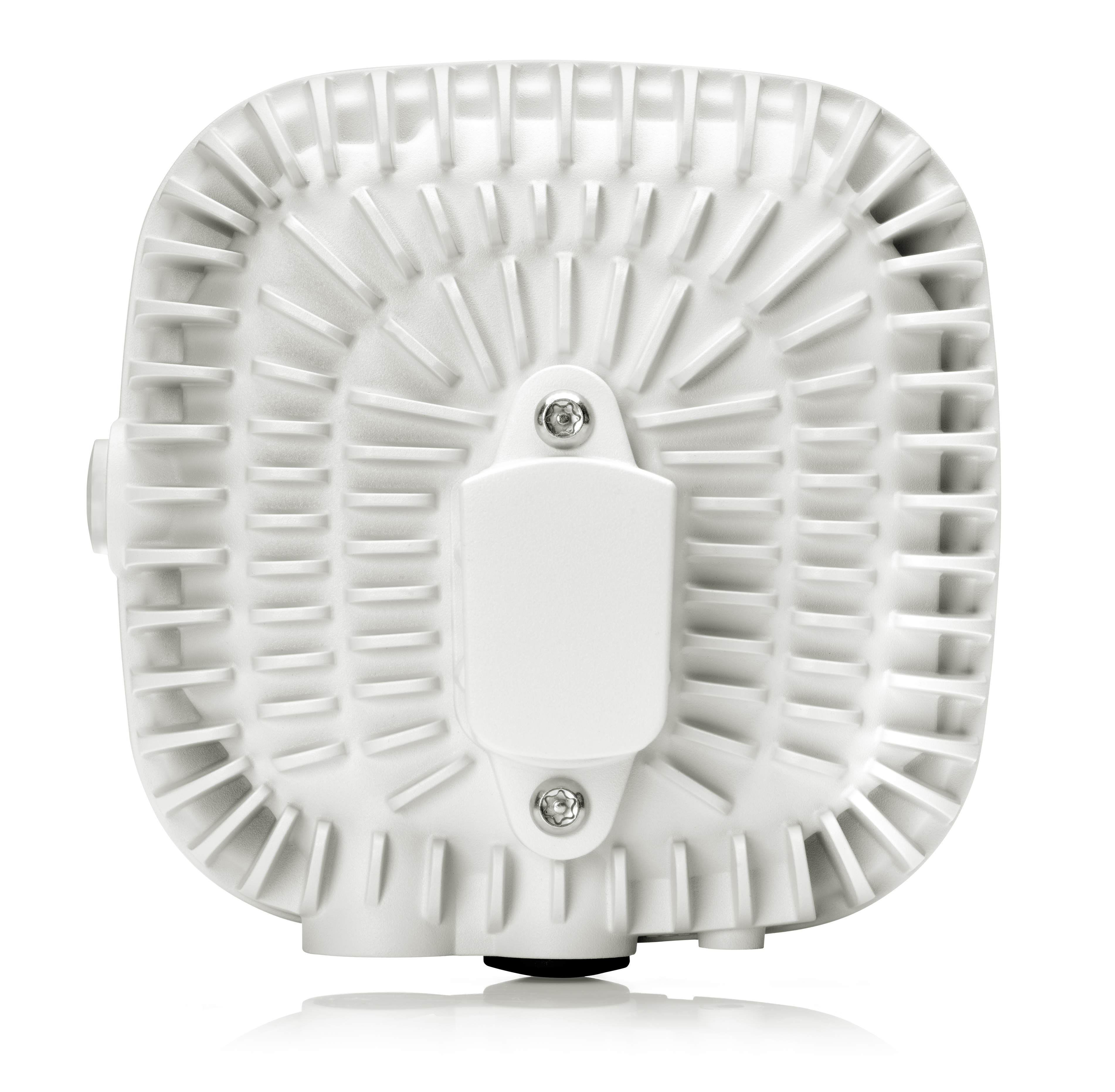

HPE Aruba AP-565 (RW) Outdoor 802.11ax
Entry-level outdoor connectivity in environmentally challenging locations. Industrial-strength surge protection. Endures extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and max 165 mph wind speeds
Skráðu þig inn til þess að sjá þín kjör
Eiginleikar
- Framleiðandi
- HPE Aruba
- Litur
- Hvítur
- Eiginleikar
- Wifi 6 , Útisendir , POE straumfæðing , 2.4 GHz , 5.0 GHz
- Gerð punkts:
- Control based cloud , Stand alone
- Umhverfisvottun
- CE
Vörulýsing
HPE Aruba Networking AP‑565 (RW) 802.11ax Dual 2x2 Radio Integrated Omni Antennas Outdoor AP
CertificationsCB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi Alliance certified Wi-Fi 6 (802.11ax)
Wi-Fi CERTIFIED™ ac (with wave 2 features)
Passpoint® (Release 2) with HPE Aruba Networking Wireless Operating System and Instant 8.3+
Wi-Fi CERTIFIED Location™
RegulatoryFCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC/EN/UL 62368-1
EN 60601-1-1, EN60601-1-2
Railway Certs:
EN 50155:2017-Railway Applications
EN 50121-1:2017-Railway EMC
EN 50121-3-2-Railway EMC
EN 50121-4:2016-Railway Immunity
IEC 61373 ed2:2008-Railway Shock and Vibration
Wi-Fi antennaBuilt-in omni-directional antennas with 5.4 dBi gain, max, for 5 GHz antennas and 3.2 dBi gain, max, for 2.4 GHz antennas
Connectivity, standardBluetooth 5 and 802.15.4 radio
2.4 GHz–Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity
Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity
Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
PortsE0: 10/100/1000BASE-T (RJ-45)
Power consumptionMaximum (worst-case) power consumption: 15.6W
Maximum (worst case) power consumption in idle mode: 4.2W
Maximum (worst case) power consumption in deep-sleep mode: 1.7
Power sources sold separately
Radio coverageAP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
WarrantyLimited lifetime warranty
Detailed product descriptionCost-effective Wi-Fi 6 outdoors
Entry-level outdoor connectivity in environmentally challenging locations. Industrial-strength surge protection. Endures extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and max 165 mph wind speeds.
DifferentiatorBuilt-in Omni Directional Antennas
5 GHz Antennas 5.4 dBi
2.4 GHz Antennas 3.2 dBi
BLE/802.15.4 Antennas 3.3 dBi
Available everywhere except US, Israel, Japan and Egypt
Weight1.03 kg (2.27 lbs)
Dimensions11 x 16.5 x 16.5 cm (4.3 x 6.5 x 6.5 in)
